HONDA K20 K24 EP3 DC5 BILLET ITB SET

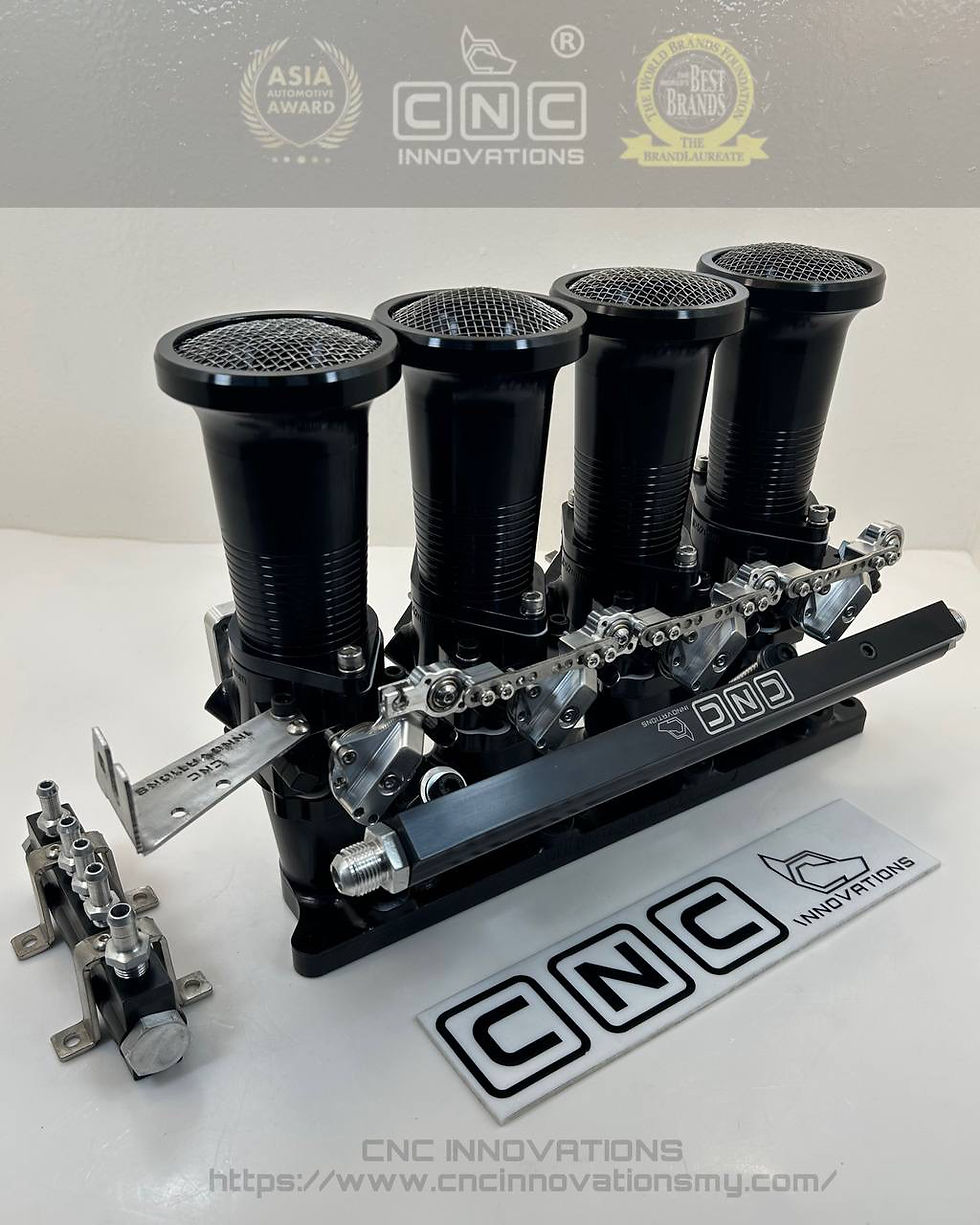

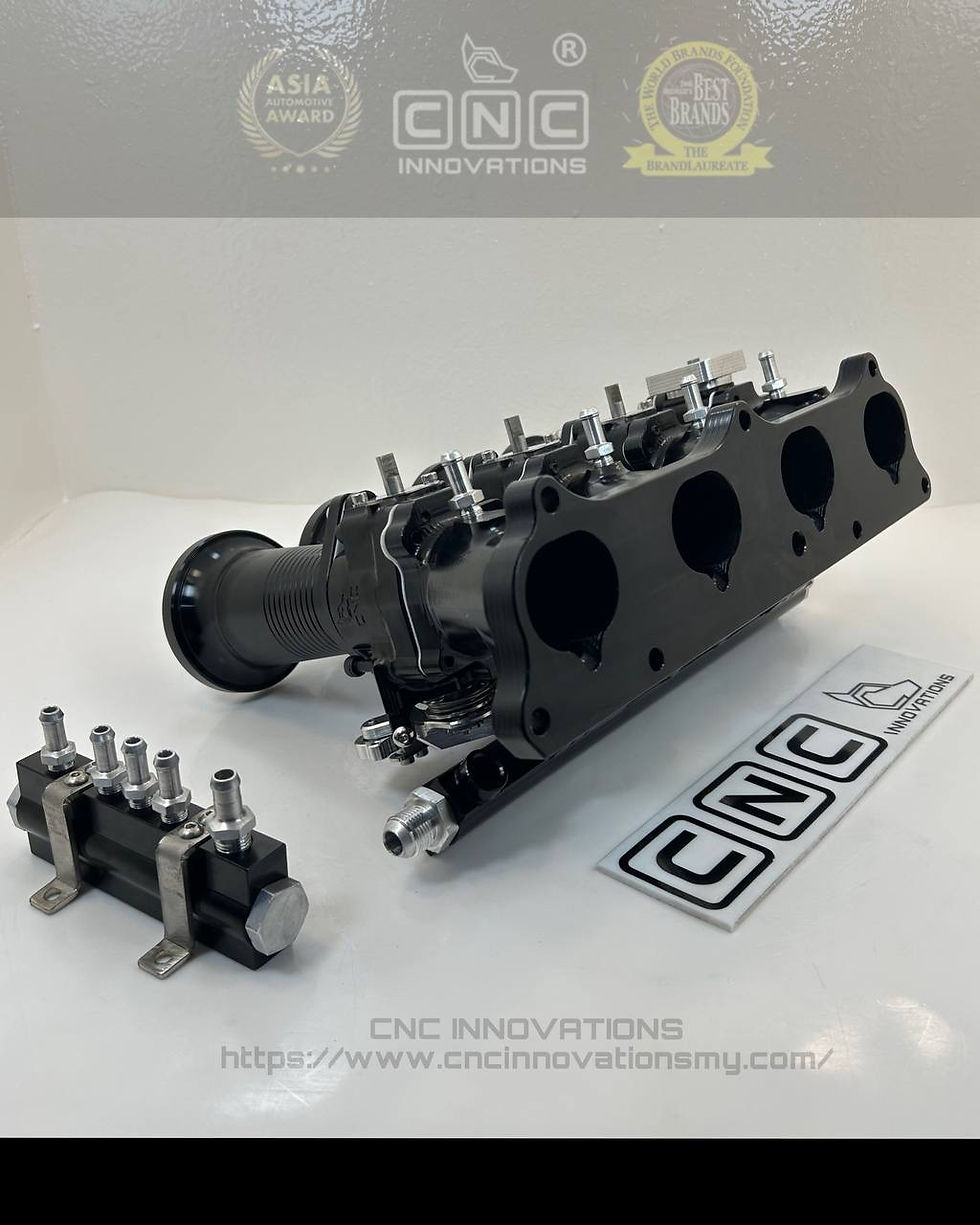

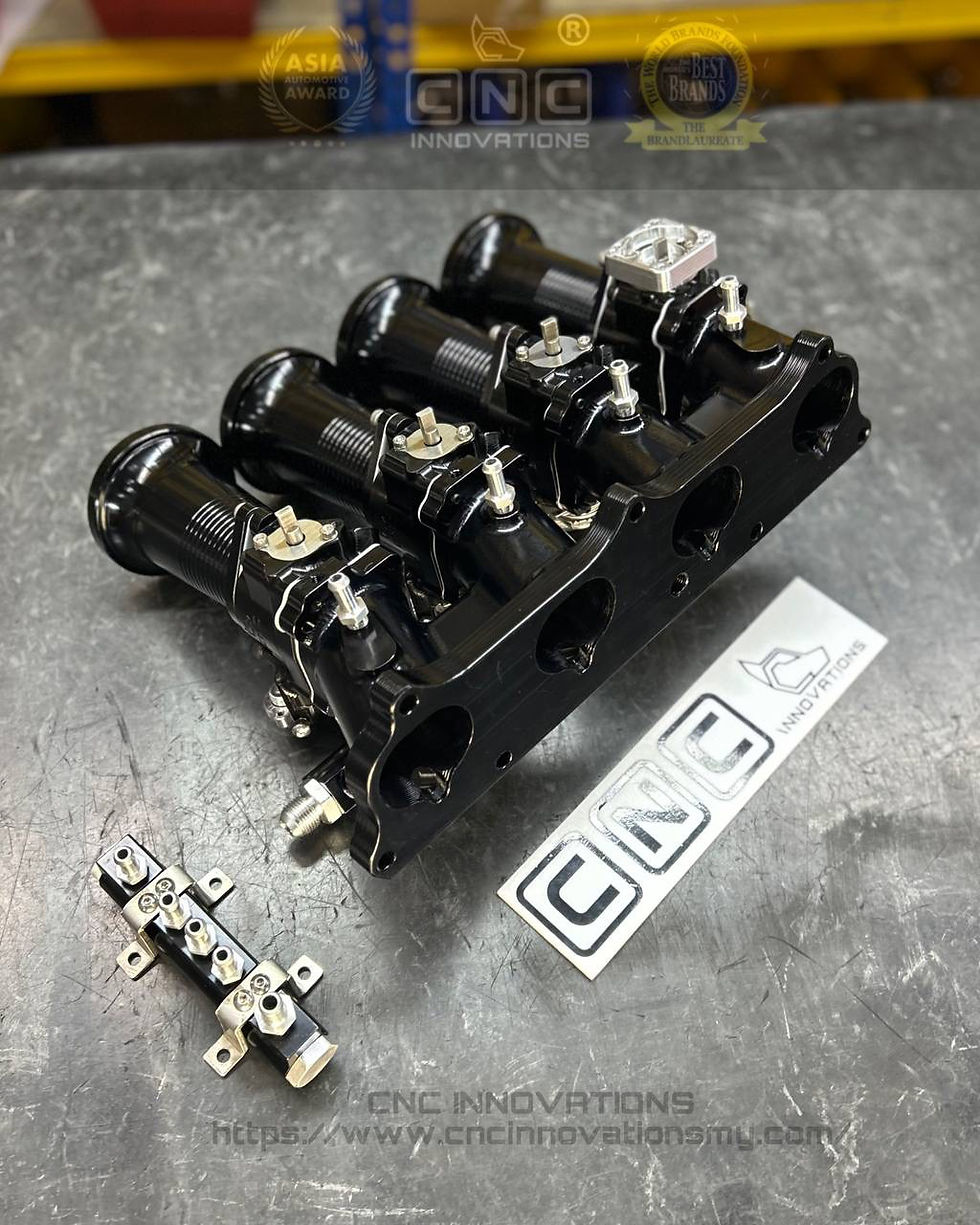

Honda K20 / K24 EP3 DC5 Billet ITB Complete Kit
Take your Honda K-Series build to the next level with our fully CNC-machined billet Individual Throttle Body (ITB) system. Designed for maximum airflow, razor-sharp throttle response, and an aggressive race-inspired appearance.
âś… Complete Kit Includes:
🔹 Billet CNC ITB Adapter & Thermal Teflon Gasket Set
• Compatible with CNC Innovations ITBs or OEM Toyota 4AGE 20V Blacktop/Silvertop ITBs
• Optional 45mm, 47.5mm, 50mm or 52mm Internal Diameter.
• Unique 6-threaded-hole design allows installation in either direction (180° rotation capability)
🔹 Billet CNC Side-Pull Individual Throttle Bodies
• 4 x ITBs included
• Available in 50mm or 52mm internal diameter
• Complete with linkage system and cable bracket
• Optional 1/8-27 NPT ports for direct-port methanol injection or nitrous systems
• NPT stoppers included if ports are not required
🔹 Billet CNC Fuel Rail
• Includes AN fittings and hose plug fitting
• Clean and high-flow design for performance fuel systems
🔹 TPS Sensor Bracket
• Designed to suit OEM Toyota 4AGE 20V TPS sensors
🔹 Billet CNC Air Stacks / Trumpets
• 100mm length for optimized airflow
• Includes Teflon gaskets
• Integrated wire mesh filters included
🔹 Billet CNC Vacuum Distribution Block
• Combines vacuum signals from all four cylinders into a stable and consistent vacuum source
• Essential for MAP sensor readings, fuel pressure regulators, brake boosters, vacuum gauges, and ECU operation
• Helps eliminate vacuum fluctuations commonly associated with individual throttle body setups
đź’Ž Features:
âś” Fully CNC Machined from 6061-T6 Aircraft Grade Aluminum
âś” Custom Anodized Colors Available
âś” Custom Logo Engraving Available
âś” Complete Linkage and Cable Bracket Included
âś” Designed and Manufactured by CNC Innovations
âś” Worldwide Shipping Available
